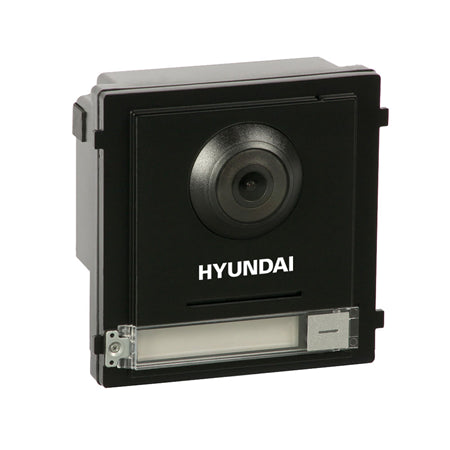

HYU-831 - Two wire IP video intercom station

Characteristics

• Clavijas two-wire cable for power source and network access
• Access control function
• Noise suppression and echo cancellation
• H.264 video compression
• Low lighting
• Manipulation alarm
• Fisheye camera with additional IR illumination
• Supports access of up to 8 submodules
• Name label customization
• Easy to extend

Specifications

• Built-in microprocessor
• Built-in Linux operating system
• Operation method using physical button
• 2 megapíxels low-light camera with infrared illumination
• H.264 video compression
• Main stream resolution: 1080P (1920x1080)
• Secondary stream resolution: 720x480
• BLC backlight compensation
• Real WDR
• DNR digital noise reduction
• Video sensor
• Anti-flicker 50/60Hz
• Viewing Angle: 180°(H), 96°(V)
• Full-duplex two-way audio
• Incorporates omnidirectional microphone
• Incorporates loudspeaker (>80dB at 20cm)
• G.711U audio compression
• Audio compression ratio of 64Kbps
• Noise suppression and echo cancellation
• Wired network interface with two-wire transmission
• Protocols: TCP/IP, RSTP
• Relay interface (main module): 2, NC+NO extracted separately
• RS485 port for connection between modules
• Manipulation alarm
• 4 alarm inputs
• Power: 24V DC (two-wire power source), 12V DC (independent power source)
• Consumption: 16W ~ 20W
• Power supply: 12V DC (only to power submodules)
• Operating temperature of -40°C ~ +60°C
• Operating humidity of 10% ~ 95%
• IP65 protection rating
• Dimensions: 99.8 (W) x 98 (H) x 43.9 mm
• Weight: 375g
